P Version Tri-proof Light

P Version Tri-proof Light

TUV&GS certificated for high lumen efficiency 140lm/w, Features a frosted cover to prevent glare.
Runs on standard 220 VAC power - range 200-240 VAC; 80 CRI.
Quick-snap end-caps for easy installation, fixed dip-switch for color temperature and power adjustment.
Constructed with high quality aluminum alloy and PC cover, providing durability and bright illumination. Manufactured to be IP65, IK10 and operate in -20 to 40 degrees.
Long lasting LED light is guaranteed for up to 50,000 life years and has a 5 year warranty. Ideal for use in garages, stairwells, and storage facilities.

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

2



Features

4(001)

IP65 IK10

4(001)

Quick Dip-switch

5(001)

Multiple link


• Product Features

> Owner design clip end cap for easy installation

> Special driver tray for replacement

> Singe or Double wiring

> IP 65 / IK10 Approval

> Multiple Link with double wiring

> Patent aluminum case as heatsink

> 5 years warranty

• Product Picture


1


• Options

>Wiring: Single or Double

> CRI : Ra>80 or Ra>90

> Function : ON-OFF / 1-10V dimming / MS / DALI

>Lumen Efficacy : 100LM/W , 125LM/W ,140LM/W



• Application

> Replacement for fluorescent NCF ,

> Warehouses , Factories, Car parks , Sports facilities,

> Sports facilities, Outdoor & Indoor Locations.




•Technical / Electrical Characters (at TA=25°C)

Item Symbol L=600/2ft L=1200/4ft L=1200/4ft L=1500/5ft

Standard

Premium

Deluxe

Standard Premium Deluxe Standard Premium Deluxe Standard Premium Deluxe

Rated Power

W 12~30W adjustable 22~40W adjustable 32~64W adjustable 32~64W adjustable

Product Code

/

TR02-30STR

-DFN1B-200

TR02-30PTR

-DFN1B-200

TR02-30DTR-DFN1B-200

TR04-40STR

-DFN1B-200

TR04-40PTR

-DFN1B-200

TR04-40DTR-DFN1B-002

TR04-64STR

-DFN1B-200

TR04-64PTR

-DFN1B-200

TR04-64DTR-DFN1B-200

TR05-64STR

-DFN1B-200

TR05-64PTR

-DFN1B-200

TR05-64DTR-DFN1B-200

LED Type /Qty

SMD2835

143pcs

143pcs

143pcs

234pcs

234pcs

234pcs

325pcs

325pcs

325pcs

325pcs

325pcs

325pcs

Lumen Efficacy

Lm/w

typ.100

typ.125

typ.140

typ.100

typ.125

typ.140

typ.100

typ.125

typ.140

typ.100

typ.125

typ.140

Luminous Flux

Frosted

Max 3000LM   Max 3750LM   Max 4200LM   Max 4000LM   Max 5000LM   Max 5600LM   Max 6400LM   Max 8000LM   Max 8960LM   Max 6400LM   Max 8000LM   Max 8960LM

Color Index

CRI (Ra)

Ra>80 OR Ra >90

Color Temperature

TC (K)

Tri-color:3000K~5000K,Mixed 4000K

Beam Angle

Degree

120 degree

LED current

mA

Constant 50mA

Input Voltage

V

AC200-240V/50Hz

Working Voltage

V

Constant DC36-42V

Housing material

/

Aluminum +PC

Protection Class

IP

IP65/ IK10

Temperature

˚C

Operation : -15˚C~+50˚C Storage: -25˚C~+55˚C

Life Span

h

50,000 hours


• ErP Technical Specification

Item

Symbol

Specification / Dat

Power factor

PF

>0.95

Efficiency in

%

>93%

Energy efficiency Class

/

A++

Standard deviation of color matching

/

<5

Starting Time

S

<0.5S

Warm-up time to 60%

S

<0.5S

Rated nominal Lifetime

/

>50,000 hours

Driver MTBF

/ /

200,000 hours.MIL-HDBK-217F(25°C)

Lumen Maintenance at e.o.l.

%

>70%

LED Device Lifetime

/

L80/[email protected],000 hours




Data sheet

60cm/2ft

6

22W
20-30W adjustable

120cm/4ft

6

40W / 60W
22~40W adjustable
32~64W adjustable

150cm/5ft

7

40W / 60W
22~40W adjustable
32~64W adjustable

Lumen Efficacy100LM/W, 125LM/W, 140LM/W
Protection ClassIP65/IK10
BeamAngle120°
Housing materialAluminum +PC
Function 1-10V / MS
CCT 3000K/4000K/5000K/6000K
Input AC200-240V/50Hz
Power factor >0.95
Color Index Ra>80

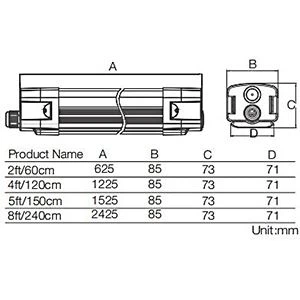

Dimension

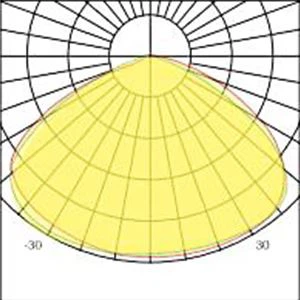

Photometry Curve

9

• Installation Instructions

1. Surface mounting procedure:

1). Fix the supplied metal clips onto a mounting surface as per the installation below



Product size size W size L1 size L2
600*83.8*72.8mm 35mm 300mm 200mm
1200*83.8*72.8mm 35mm 900mm 200mm
1500*83.8*72.8mm 35mm 1200mm 200mm
2400*83.8*72.8mm 35mm 1150mm 200mm





2). Push the Lamp body into the mounting clips

3 4


2.Suspending Procedure:

1). Install the suspension rope then wiring as below instructions Adjust the length of the suspension rope to reach the suitable height and push the Lamp body into the mounting clips
QQ20210511154800 QQ20210511154811


3. Wiring steps and requirements

5 6 7 8 9




No Information

No Information
